COMMERCIAL HEAT PUMP SERIES
24-TRAY COMMERCIAL HEAT PUMP DEHYDRATOR
Model: RBM-A01 / 3300W Closed-Loop Heat Pump Dehumidification System
24 GIANT TRAYS
600L Commercial Volume
3300W HEAT PUMP
Closed-Loop Inverter
SUS304 STEEL
780×620mm Trays
20–70°C / ≤65dB
Smart Touch Screen
ENGINEERING & CRAFTSMANSHIP
ADVANCED CLOSED-LOOP HEAT PUMP TECHNOLOGY
Weather-independent dehumidification that cuts energy consumption while locking in active nutrients.
01
Closed-Loop Heat Pump Tech
Independent of external climate and ambient humidity. Recovers internal latent heat to achieve ultra-high thermal efficiency and reduce power costs.
02
Low-Temp Nutrient Retention
Gentle 20–70°C (68–158°F) precision drying protects natural enzymes, vibrant food colors, and bio-active ingredients from high-heat degradation.
03
Food-Grade 304 Steel Racks
24 massive SUS304 wire racks (780×620mm, 10mm pallet frame). 100% BPA-free, corrosion-resistant, and built for heavy commercial food yields.
04

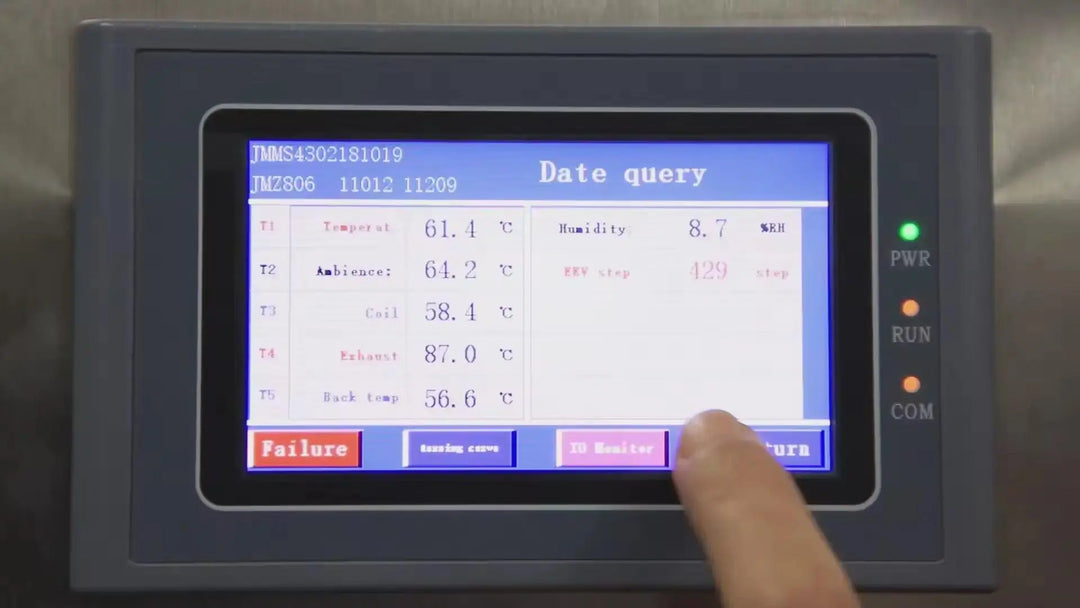

Smart Touch Screen & Presets
Intuitive color touch panel with built-in temperature guidance, 201 stainless steel industrial tower (242.5kg), and heavy-duty caster wheels.
COMMERCIAL HEAT PUMP SERIES
MASSIVE 600L CAPACITY & 24 GIANT PALLET TRAYS
780×620mm Giant Trays for High-Value Commercial Production with Zero Mold Risk
600L CAPACITY
Commercial Volume
24 GIANT TRAYS
780 × 620 mm
20–70°C RANGE
Gentle Low-Temp Drying
3300W HEAT PUMP
Closed-Loop Inverter
LOW-TEMP • ARTISAN QUALITY
Artisan Jerky & Charcuterie
Gentle low-temp dehumidification delivers tender, chewy beef jerky, biltong, and dry-cured meats with superior color and texture.
LOW TEMP // PREMIUM TEXTURE
35–50°C • DELICATE BOTANICALS
Herbal Teas & Botanicals
Optimal 35–50°C drying protects delicate floral petals, medicinal roots, and herbs without burning volatile aromatic oils.
35–50°C // AROMA PROTECTION
PREMIUM • ZERO BROWNING
Premium Fruits & Superfoods
Batch-dry mango slices, berries, apples, and functional mushrooms with 100% natural vitamin preservation and zero browning.
VITAMIN CARE // ZERO BROWNING
BENCHMARK STANDARDS
DETAILED TECHNICAL SPECIFICATIONS
Every measurement and calibration metric certified for professional durability.
| Specification / Parameter | Technical Details & Standards |
|---|---|
| Model Number | RBM-A01 (Commercial Heat Pump Dehydrator) |
| Total Capacity | 600 Liters (24 Extra-Large Pallet Trays) |
| Product Dimensions (W×D×H) | 1180 × 687 × 1772 mm (46.5" × 27.0" × 69.8") |
| Package Dimensions (W×D×H) | 1260 × 780 × 1810 mm (49.6" × 30.7" × 71.3") |
| Net Weight / Gross Weight | 242.5 kg (534.6 lbs) / 320.0 kg (705.5 lbs Crate) |
| Tray Dimensions & Count | 24 Giant Trays | 780 × 620 mm (30.7" × 24.4") per tray |
| Material Pallet Size | 790 × 620 × 10 mm (31.1" × 24.4" × 0.4") |
| Rated Power & Voltage | 3300W Heat Pump Inverter | 120V / 230V ~ 50/60Hz |
| Temperature Control Range | 20°C–70°C (68°F–158°F) Gentle Low-Temp Drying |
| Dehumidification Technology | Closed-Loop Air Source Heat Pump Condensation Cycle |
| Operating Noise Level | ≤ 65 dB Industrial Heavy-Duty Acoustic Design |
| Rack Material | Food-Grade SUS304 Stainless Steel (BPA Free) |
| Housing & Door Material | 201 Stainless Steel Body + Tempered Glass Window Door |
| Control Interface | Smart Color Touch Panel with Preset Dehydration Guide |
| Safety & Mobility | CE Certified, Heavy-Duty Industrial Swivel Casters, Auto-Shutoff |
PREMIUM MATERIAL & CRAFTSMANSHIP YOU CAN TRUST
Built with food safety and industrial heat pump durability at the core.
✓
100% BPA-Free SUS304 Trays
No plastic chemical leaching under prolonged high-temperature drying cycles.
✓
Closed Dehumidifying Chamber
100% climate-proof drying with zero outdoor moisture or dust entry.
✓
Easy to Clean & Maintain
Smooth brushed stainless steel interior and dishwasher-safe slide-out wire racks.
✓
Industrial Casters & Latches
Airtight compression latches with 360° lockable rolling wheels for easy mobility.
